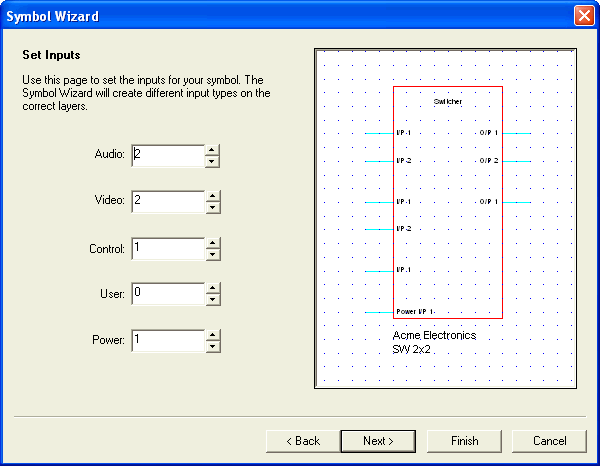

Using the entry boxes you can set the different inputs
for the product. Stardraw
A/V
Lite
supports different input types, e.g. Audio, Video, Control, Power and
Other. Simply
set the number of each type of input you want. The wizard will add a stub
for each input and place it on the correct layer.
The stubs created by the wizard maintain are spaced 2 gridpoints apart and groups of different input types have an additional gridpoint separating them.
Stubs created by the Symbol Wizard support Rubber-Banding, so Doglegs used to connect your symbol will stay attached to it as you move it.
Click on Next to confirm the inputs.
 |
