Cable Fillets

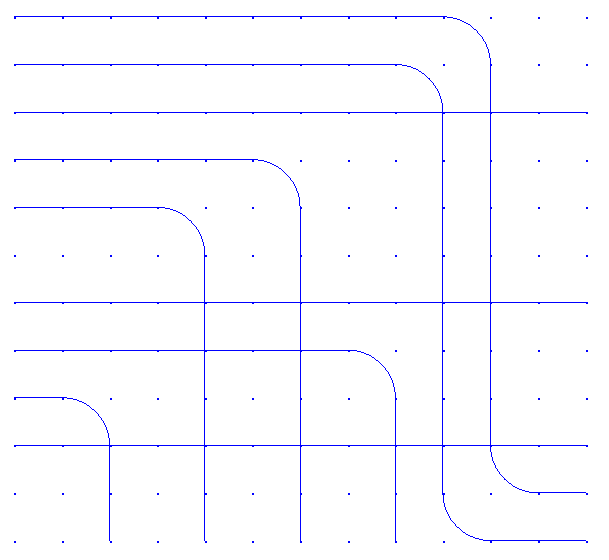

Cable Fillets can be used to apply rounded corners to Cables.

Fillet is a document mode, so when the Cable Fillets button is checked, all Cables will have all their corners rounded.

The radius of Cable Fillets is defined using the Document Properties Grid.  These parameters apply across the whole document: Fillets are automatic, taking the same settings throughout the document and they cannot be individually modified, added or deleted.

Document Properties Grid - Cable | Fillets

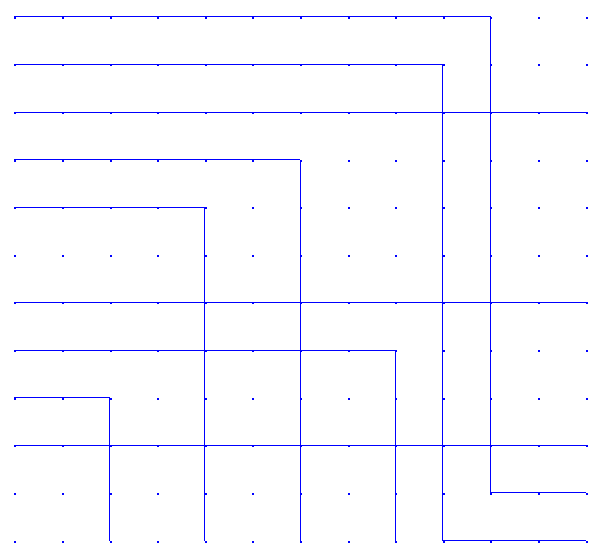

Enabled: True = On, False = Off.  This value mirrors the state of the Cable Fillets button in the toolbar and defines whether Cable Fillets are On or Off.

Radius: defines the radius of the Fillets.  The default value is 2.5mm, corresponding to the default distance between gridpoints in Block Schematic and Pictorial Schematic drawings, so the Fillet occupies one grid square.
