Even with the tens of thousands of products available in Stardraw A/V Lite's libraries there are likely to be times when you want to create your own symbol. The Symbol Wizard can be used within the Block Schematic environment to create a quality symbol that meets Stardraw A/V Lite's specification in seconds. The wizard is a five step process.
_Default.gif)

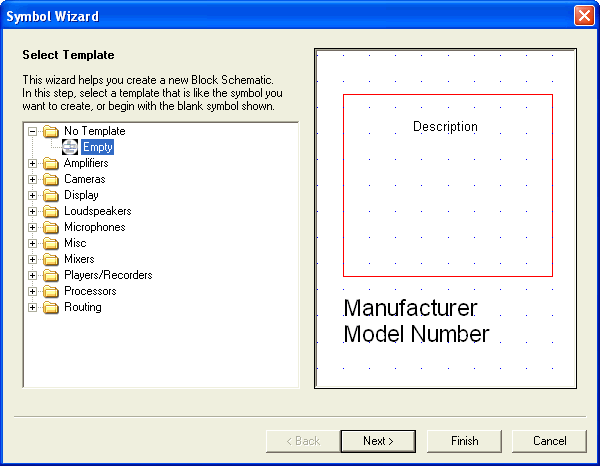

This dialog allows you to base your symbol on one of hundreds
of pre-drawn templates. The
templates are grouped by product types, e.g. Amplifiers, Display (screens,
projectors etc), Players/Recorders etc, and different configurations of
many product types are already available, e.g. 1x4 switcher, 8x8 switcher
etc. Alternatively
you can start with a blank template as shown here.
Changes you make in the wizard are dynamically displayed in the viewer window on its right.
Click on Next to confirm the template.
 |
